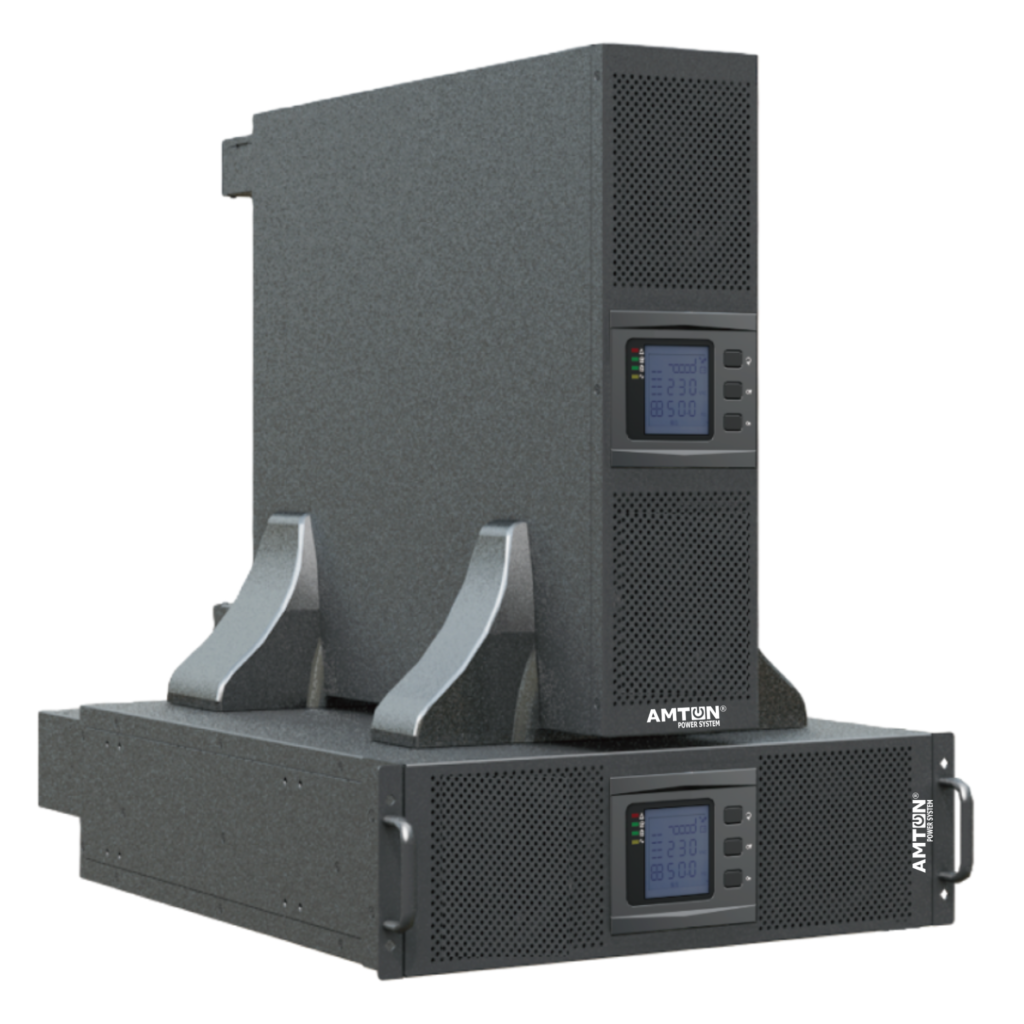

AUR-1339 Rack Tower Online UPS 10-20KVA
AUR1339 series UPS is a three-phase in and three-phase out high frequency UPS with medium power capacity. It can be operating in three-phase in and single-phase out & single-phase in and single-phase out configurations. This UPS is equipped with three-level inverter topology, it results in high efficiency. With higher power density, smaller footprint, it takes the leading position in the UPS industry with same power capacity; Adopting unique power unit redundancy design technology, decrease the abnormity risk of system after single-point failure, greatly increase the system reliability. For user, it is your best choice with high investment rate.
Application :
- Network management centers,
- Data centers
- Telecom Equipment
- Hospitals
- Medical Equipment
Features
- Convertible Rack/Tower design with an adjustable LCD screen orientation.
- High-Capacity Charger: Settable charging current up to 20A for rapid recharges.
- Unity Power Factor: Delivers maximum real power (PF = 1.0) to support more critical loads efficiently.
- Scalable system reliability supporting up to 4 units in parallel.
- Standard Ports: Built-in RS232, RS485, Parallel, and Emergency Power Off (EPO).
- True online double-conversion technology for absolute power stability.
- Flexible Battery Configuration: Adjustable battery string sizing (30–50 pcs) to optimize runtime and costs.
- Multi-Phase Architecture: Supports flexible 3/3, 3/1, and 1/1 phase configurations.
- Expansion Slots: Supports optional SNMP, Relay cards, BMS, and PDU modules.
- Built-in Bypass & Protection: Safeguards against short-circuits, overloads, overheating, and battery faults.
