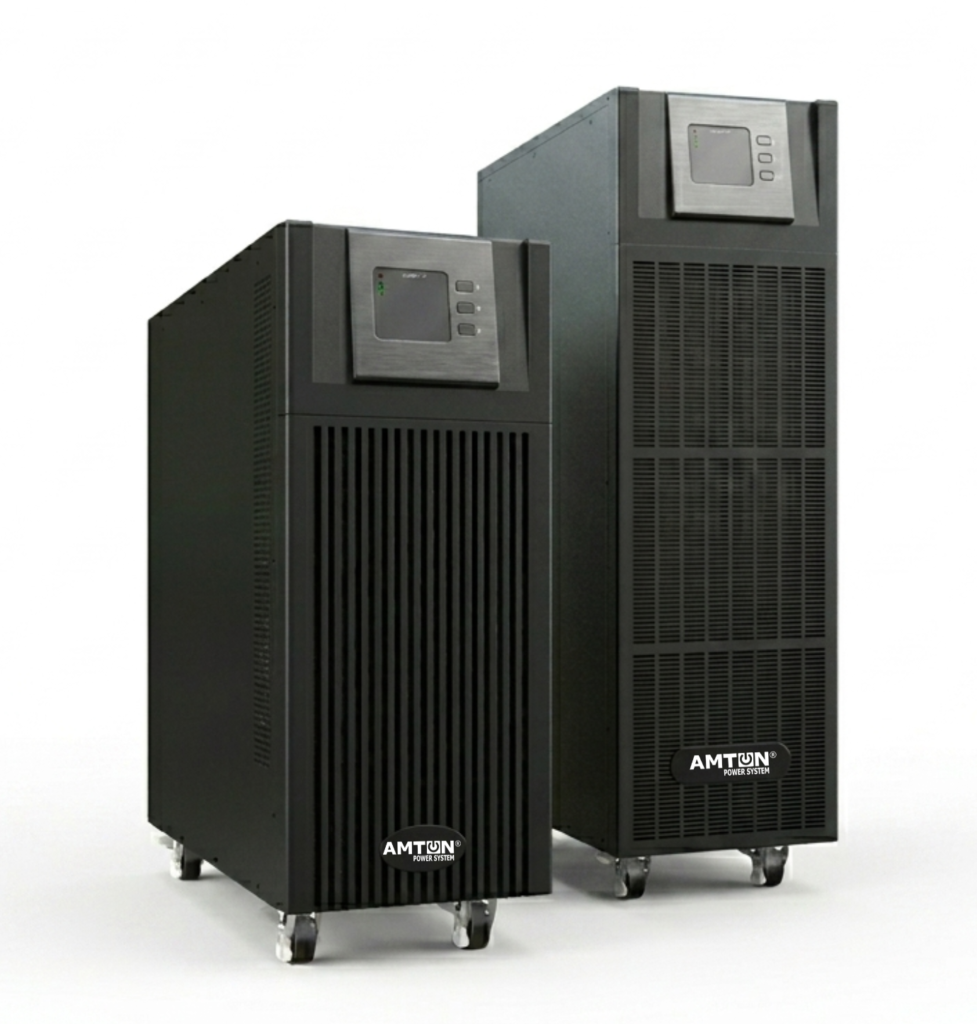

AUT1339 Tower Online UPS 10-40 kva
The AUM1339 series UPS offers a hot-swappable modular structure. As a scalable UPS, it can easily be upgraded or expanded as power increased. The series’ N+X module and built-in system redundancy maintain a steady, reliable source of energy. The hot-swappable feature ensures that the mean time for repair (MTTR) is close to zero, which helps lower the total cost of ownership (TCO).
Application :
- Data centers
- Network management centers
- Enterprise server rooms
- Telecom Equipment
- Medical Equipment
- Hospitals
Features
- Online double conversion with DSP control
- High power density design
- Input current harmonic:<3%
- Wide input frequency range 40~70Hz
- Wide input voltage range:208~478Vac
- Dual input source(optional for standard unit)
- Maximum charging current up to 20A (Settable)
- N+X parallel redundancy, support maximum 4 units in parallel
- Colorful 2.4 inch TFT LCD display and 7 inch LCD display LCD are optional
- Parallel port, Dry contact, Intelligent slot, SNMP card (Optional), Relay card (Optional),Battery temperature sensor (Optional)
- Versatile LCD human computer interface
- Generator compatible
- Self testing when UPS startup
- Intelligent fan speed regulation
- 50/60Hz frequency converter mode
- ECO mode operation for energy saving
- The output can meet 100% unbalanced load
- Multiple communication interface: USB, RS232,RS485,
- Optimization battery group, the quantity of battery 10~30kVA:16/18/20pcs (30~50pcs is optional) 40kVA:30~50pcs
- Multiple protection function: short circuit, overload, overheat, battery overcharge and over discharge, output low voltage and fan fault alarm
