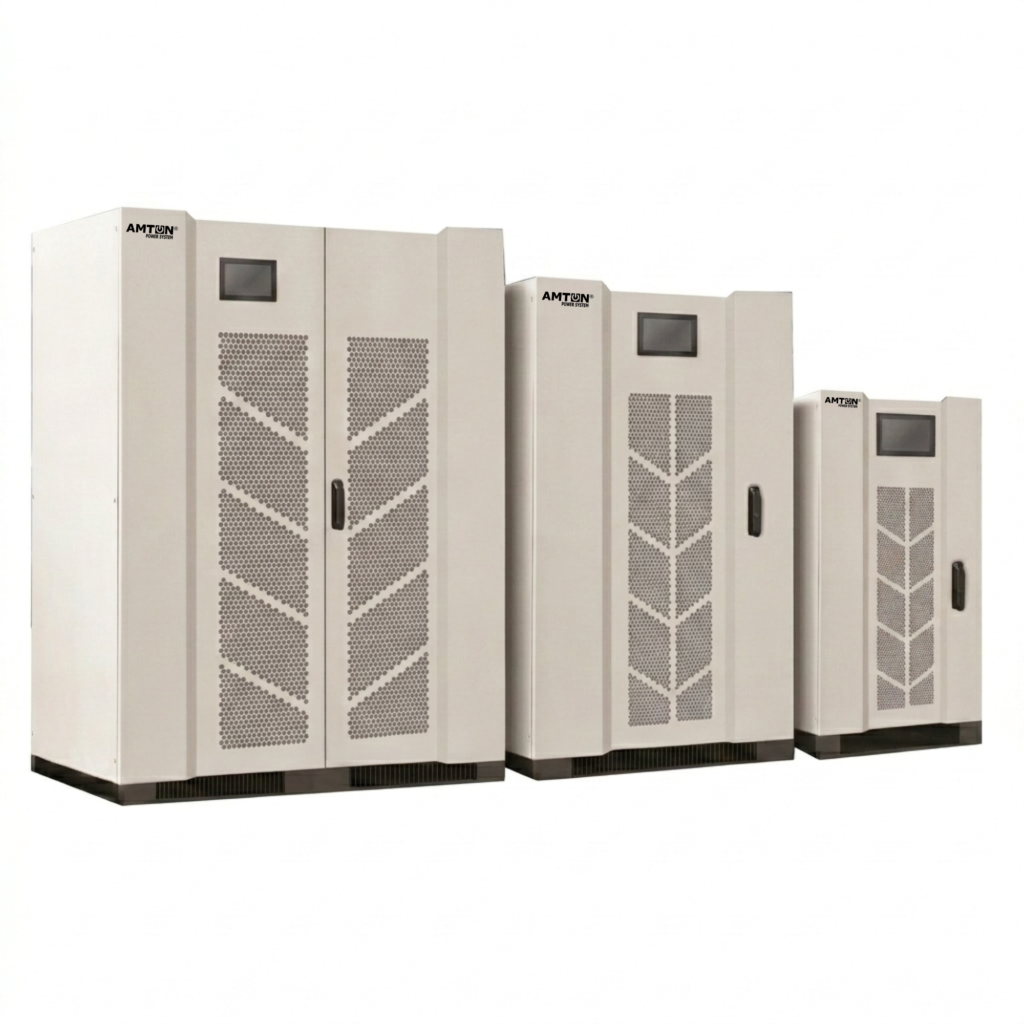

AUX9339 Tower Online Industrial UPS 10-400 kva
The aux 9339 series ups is a three phase in and three phase out online transformer based low frequency ups it is designed for harsh environment especially industrial application the product capacity covers all power range from 10 KVA to 400 KVA it’s advanced battery charging system enables the ups to supply a long backup time while the charging time is rather short, and it’s temperature compensation system can help to prolong the service life of the battery it’s true double conversion online technology provides pure and safe power and the dsp technology responds quickly to different power supply problems, making sure high levels of reliability and protection for industrial facilities and mission critical systems.
The AUX 9339 series is compatible to all kinds of loads Specially designed for harsh power environment and industrial applications
Application :
- Factory equipment
- Telecom equipment
- Enterprise server rooms
- Network management centers
- Data centers
- Transportation
- Medical equipment
- Hospitals
Features
- True Online Double-Conversion: Delivers clean, continuous power with zero transfer time to ensure zero output interruption for critical loads.
- Full DSP Digital Control: Utilizes advanced Digital Signal Processing to eliminate analog device failures, making the entire control system highly stable and reliable.
- 0.98 Input Power Factor: Built-in filter reduces grid harmonic pollution.
- 0.9 Output Power Factor: Maximizes usable power and lowers operating costs.
- Wide Input Tolerance: Handles 380V/400V/415V ($+25\% / -20\%$) and 45Hz–65Hz to maximize battery life.
- Intelligent Battery Management: Employs advanced auto float/boost charging technology to optimize battery efficiency, reduce manual maintenance, and extend battery lifespan.
- Real-Time Backup Prediction: Dynamically calculates and displays the remaining battery runtime on the control panel based on real-time discharge current and voltage.
- N+X Parallel Redundancy: Allows up to 6 units to be connected in parallel using simple plug-and-play cables for flexible capacity scaling and system redundancy.
- Smart Fault Isolation & Master-Slave Hierarchy: Faulty units automatically cut off from the load without system interruption, while a dynamic master-slave setup eliminates any single point of failure.
- Generator-Optimized Power Walk-In: Sequentially turns on parallel rectifiers to prevent sudden load surges on generators, reducing the required generator capacity and allowing battery co-powering.
- Comprehensive Multi-Protection & EPO: Features full pre-startup self-diagnostics with safeguards against short circuits, over-temperatures, and voltage faults, alongside an accessible Emergency Power Off (EPO) button.
- Advanced Monitoring & Dry Contacts: Outfitted with an LCD/LED status panel, RS-232/RS-485 communication ports (optional SNMP/MODBUS), and programmable dry contacts for instant system alerts.
